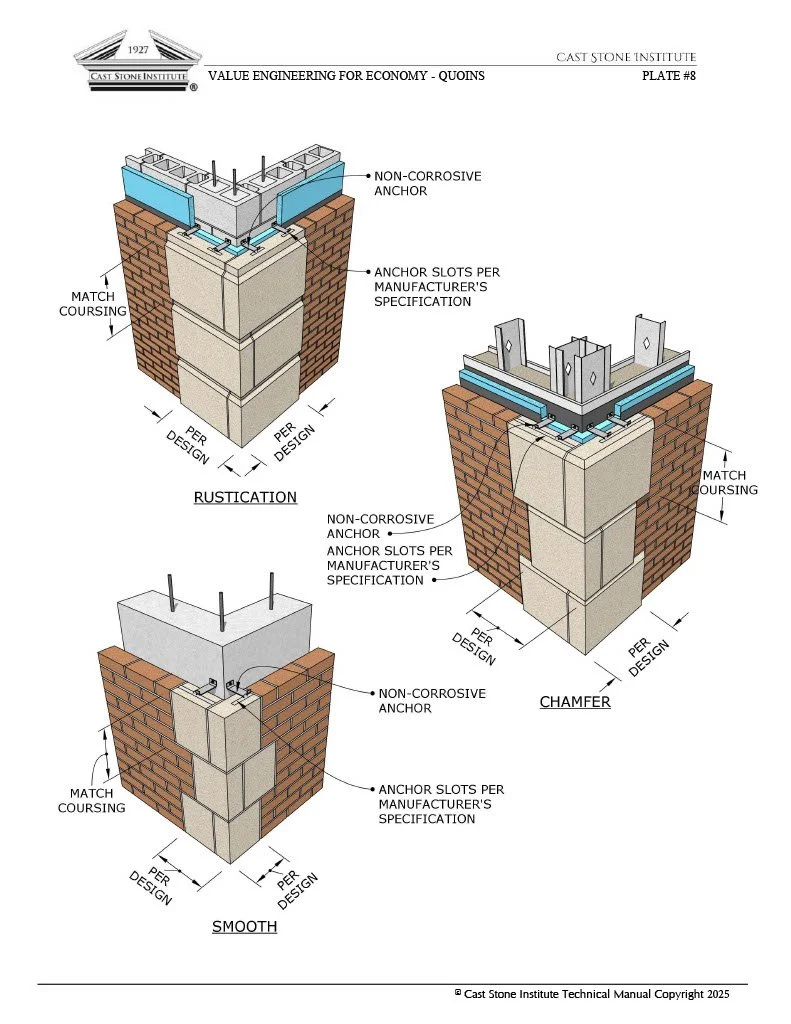

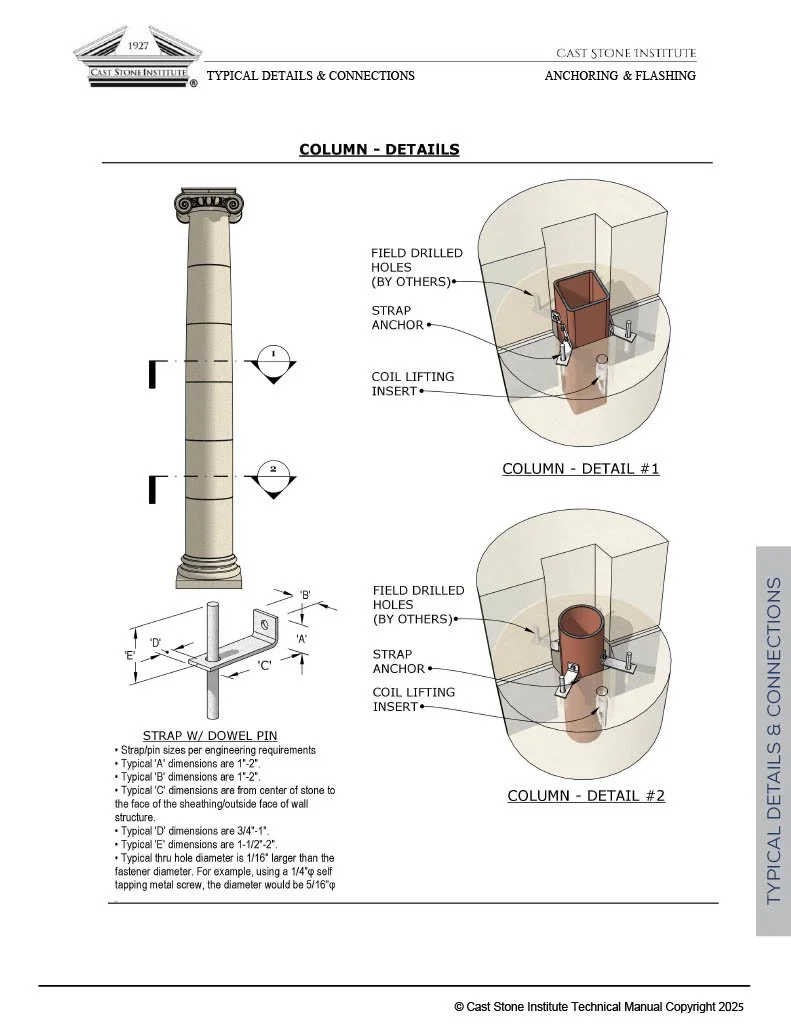

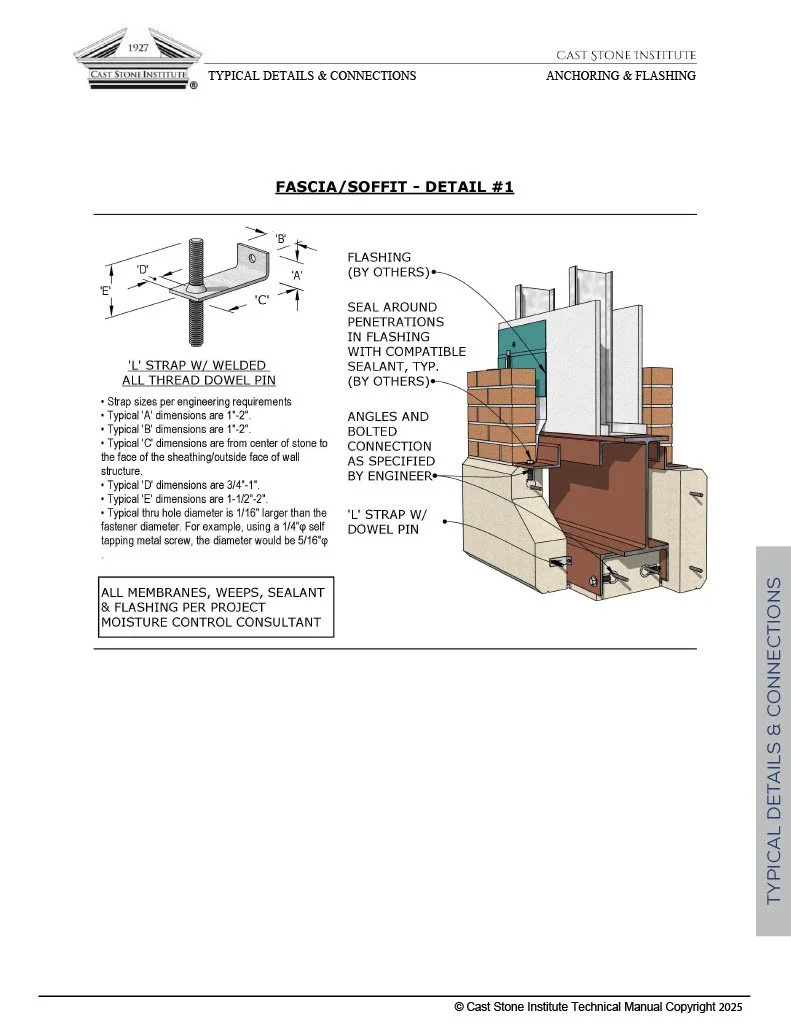

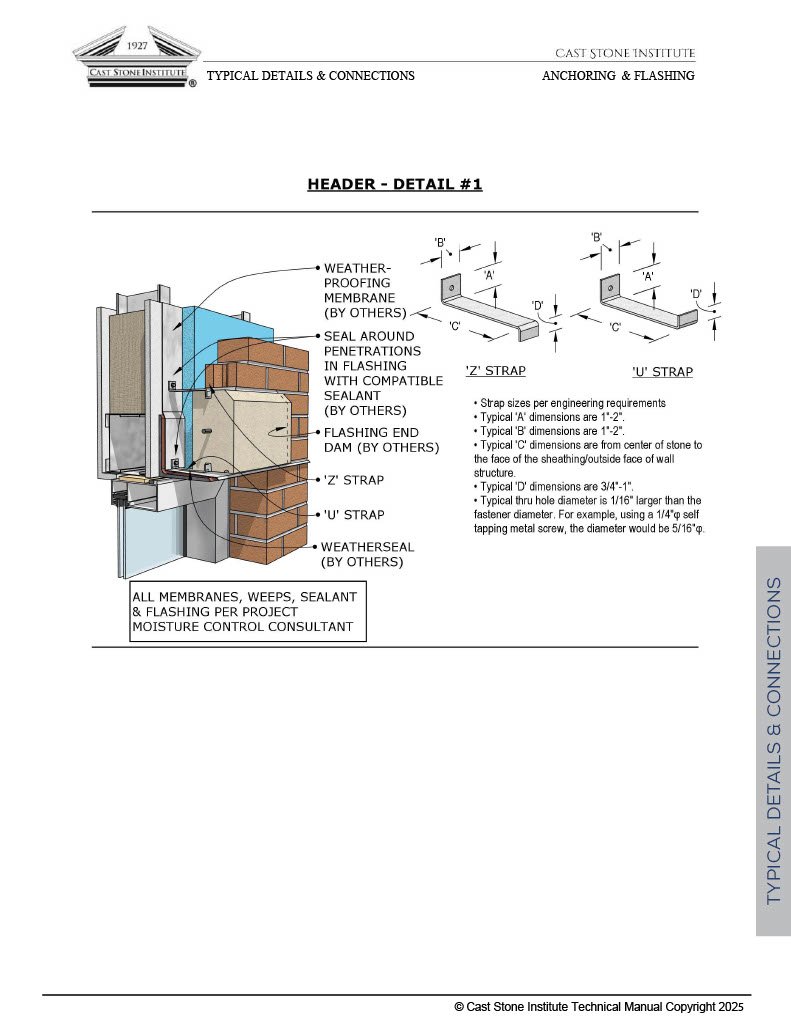

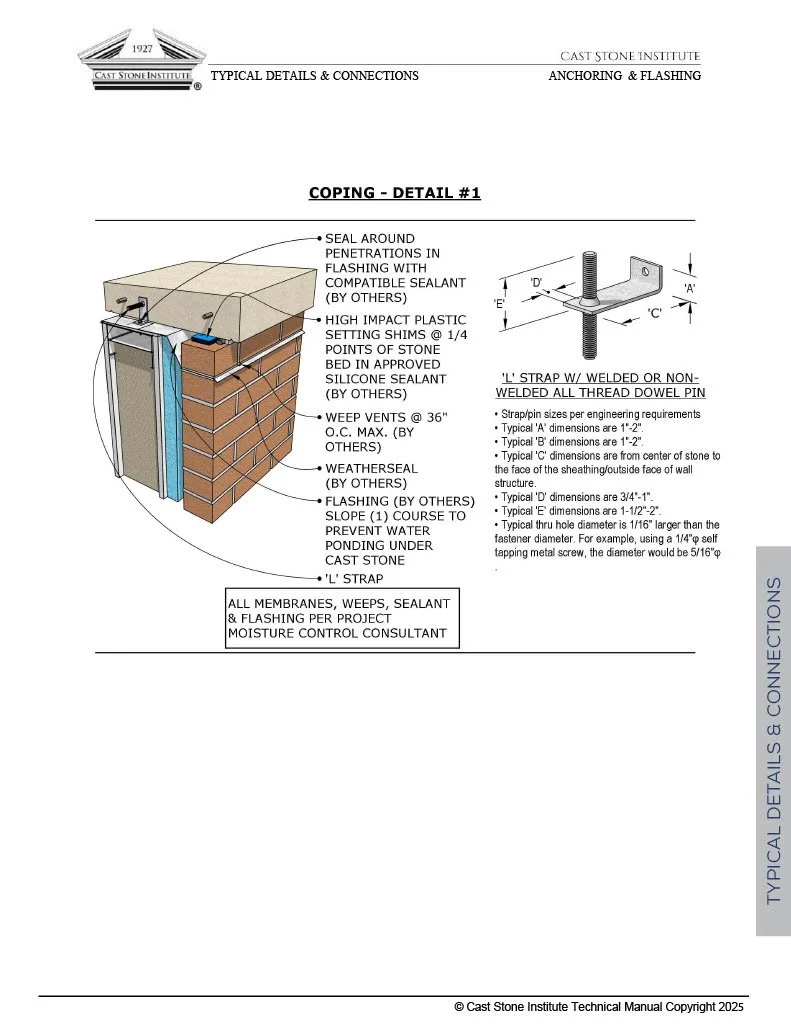

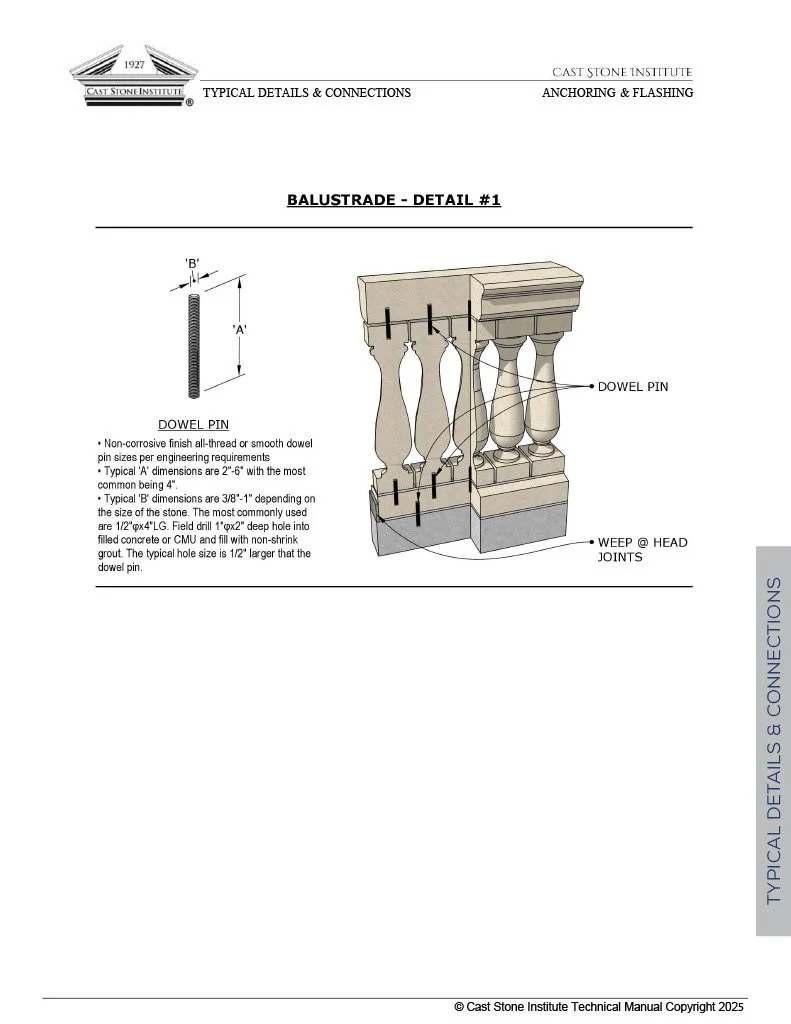

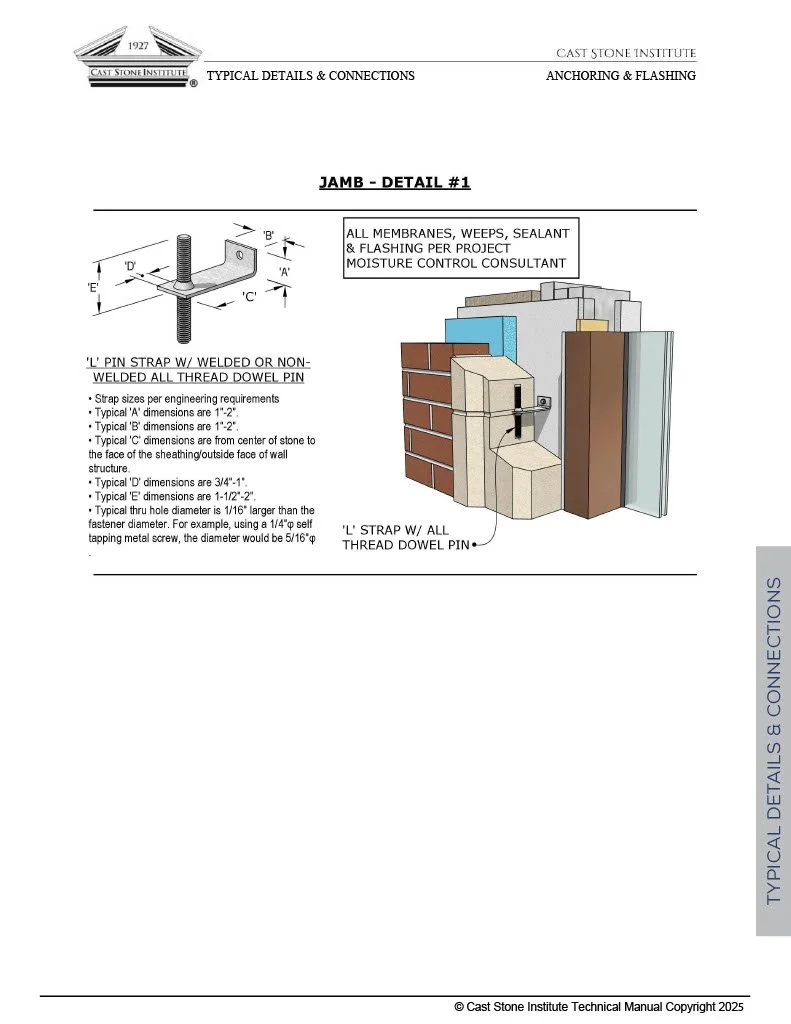

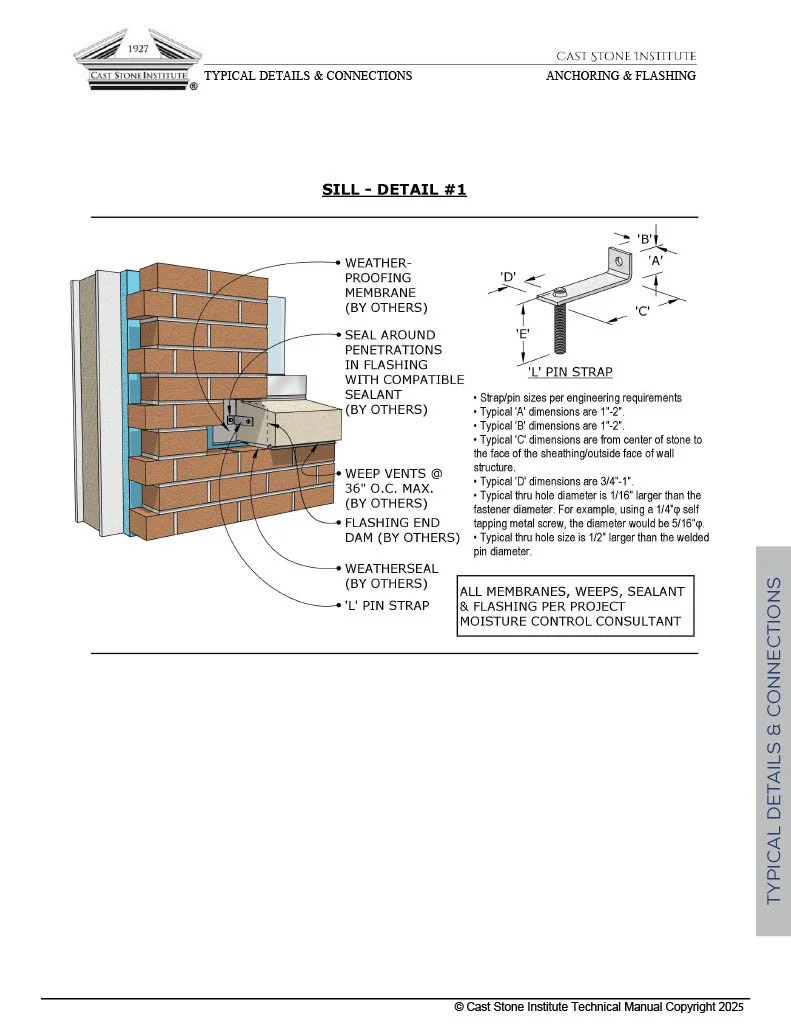

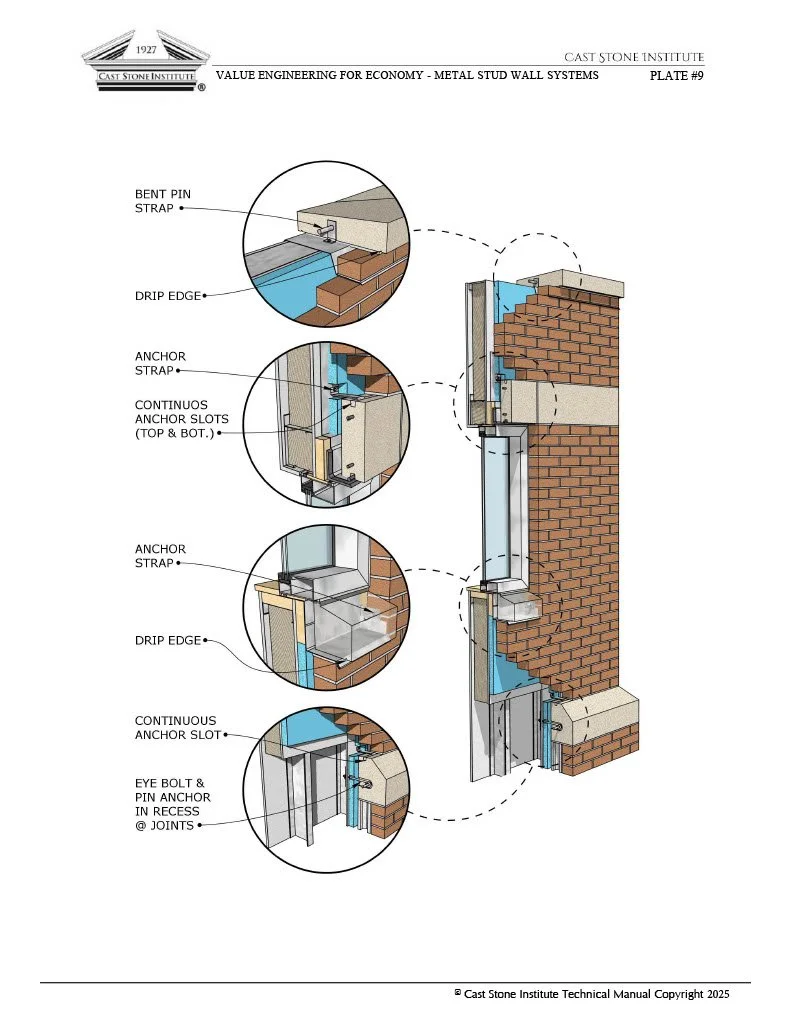

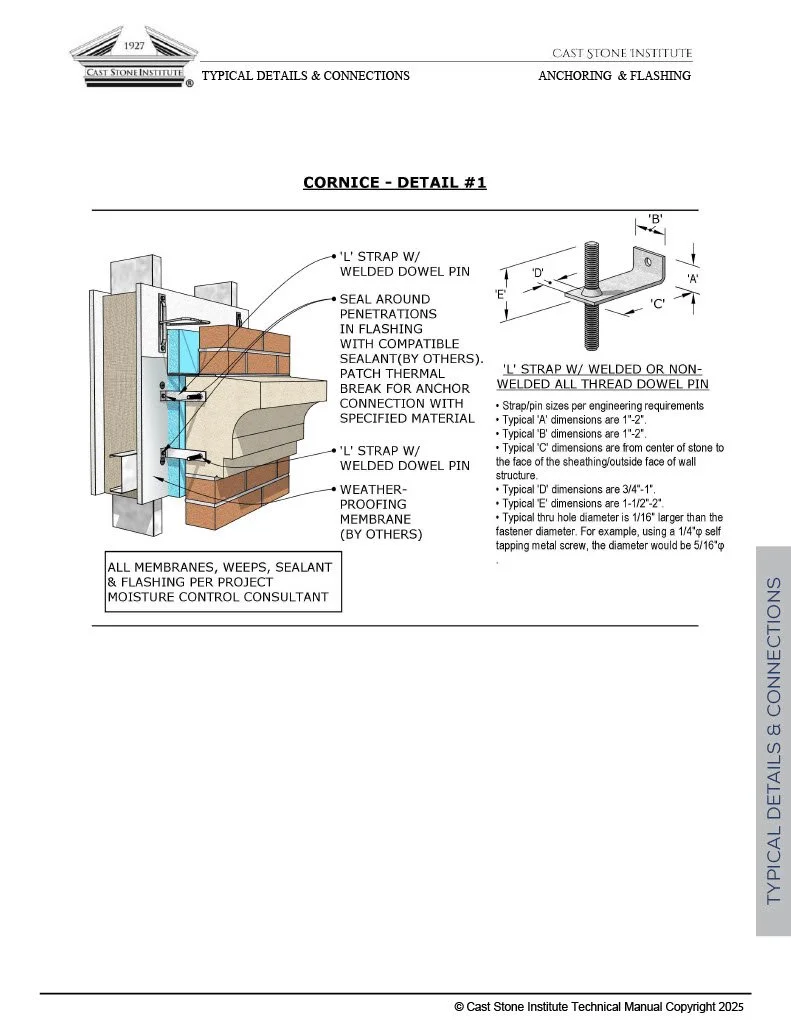

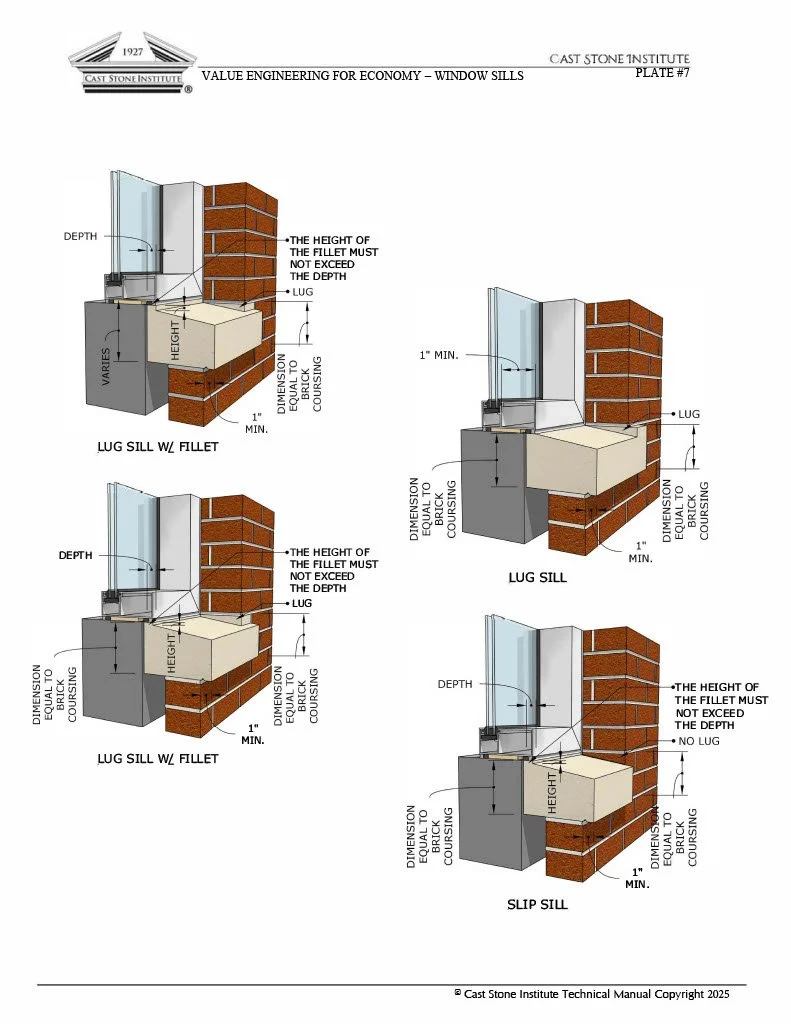

These typical details and connection drawings are provided as practical references for architects, engineers, and contractors working with architectural cast stone. All profile dimensions and anchoring methods are examples and may in most cases be altered to suit your particular design.

While the connection details shown demonstrate proven anchoring methods, we recommend consulting with your structural engineer for considerations specific to your application.

Using the proper type and correct quantity of anchors for your design and stone weight will help reduce both manufacturing and setting costs.
